RK3288 POE Healthcare Android Tablet With 10.1 inch LCD Panel

Ask Lasest Price
Brand Name :	ELC
Model Number :	WH1012T
Certification :	CE, FCC, RoHS
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	150,000 Pieces per Month
Delivery Time :	7-20 work days

Add to Cart

Product Details
Company Profile

RK3288 POE Healthcare Android Tablet With 10.1 inch LCD Panel

10.1 Inch POE Healthcare Monitor Android Tablet with One Click to Call

14 Years of Digital Signage Experience

400+ Partners

24/7 One-stop Service

Quality Guarantee

Customizable Product Details (Hardware and Software)

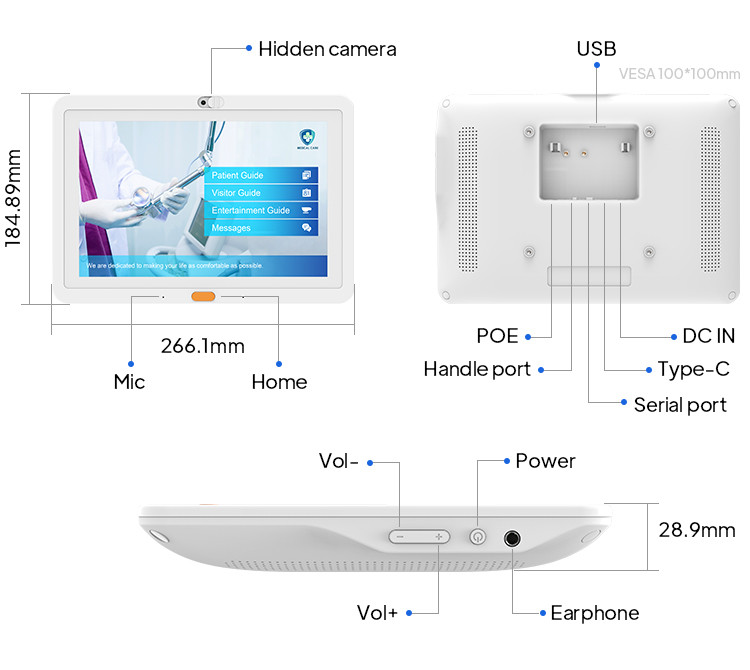

Appearance characteristics

Camera with switchable option (can be hidden): It protects the patient's privacy while allowing doctors to monitor their condition. The camera can be switched on or off as needed.
Equipped with a call handle and button: Doctors and patients can easily communicate with each other at any time, facilitating monitoring of changes in the patient's condition.
VESA wall mount: The equipment is easy to install and does not take up the space of other medical equipment.
Telescopic support: The monitor height can be adjusted for patient-friendly use.

Use Scenarios

Digital signage: It can be used for indoor advertising, video playback, etc. It displays hospital information to showcase its strength and can also play entertainment content for patients to watch.
Medical tablet: It is often installed at the patient's bedside and used for medical consultations. Our product enables rapid communication between doctors and patients, thereby improving treatment efficiency.
Production monitoring display: It can be used to monitor the production process in real-time, making it easy to control the progress of production.
Feedback system: It can be used for service evaluation, information gathering through questionnaires, and more.

Function

POE: Power over Ethernet. This is a technology that allows electrical power to be transmitted over Ethernet cables, which can be useful for powering devices that are located in places where electrical outlets may not be available.
The device has a serial port that can be used to connect to other medical devices for interaction and data exchange.
The device has a one-button call function that is mainly used in medical services. This allows doctors to respond quickly to patients who require urgent medical attention. Nurses can use the device for phone calls or video chats to assess the situation before deciding whether or not to take action, which can improve efficiency and reduce stress for both staff and patients. The device also uses digital patient records instead of paper copies, which enables more efficient sharing of medical information among hospital staff. To ensure patient privacy, NFC functionalities are implemented to control access to medical data. Mainly used in medical services, so that doctors can deal with patients‘ sudden illnesses in a timely manner.

Software system

Our device is equipped with a powerful Quad-core processor, enabling smooth operation of various applications. We offer different memory configurations to suit your needs, including:

1. Standard configuration: RK3288 2+16G with Android 8.1 system. Other Android versions such as 5.1, 6.0, 9.1, 10.1, and 11 are also available.

2. High version: RK3399 with Android 9.0, with various memory options available. Other Android versions such as 7.1, 10.0, and 11 are also available.

Hardware

1. Interface: SD card, USB, serial port, headphone jack, OTG port, RJ45

2. speaker:2*2W

3. Mic

4. Other customizable

System	CPU	RK3288, Quad-core cortex A17
	RAM	2GB
	Internal memory	16GB
	Operation system	Android 8.1
	Touch screen	10-Point capacitive touch
Display	Panel	10.1" LCD panel
	Resolution	1280*800
	Display mode	Normally black
	Viewing angle	85/85/85/85(L/R/U/D)
	Contrast ratio	800
	Luminance	250cd/m2
	Aspect Ratio	16:9
Network	WiFi	802.11b/g/n/ac, 2.4G/5G
	Ethernet	10M/100M ethernet
	Serial port	Serial port(RS232 format)
	Support BT	BT 4.0
Interface	Type-c	Support
	RJ45	Ethernet interface (POE function standard, IEEE802.3at, POE+, class 4, 25.5W)
	Power jack	DC power input
	Serial	8PIN, 2.0MM (RS232 fomat)
	Earphone	3.5mm earphone
Media play	Video format	MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, etc., support up to 4K
	Audio format	MP3/WMA/AAC etc.
	Photo	jpeg
Other	Wall mounting bracket	100mm*100mm wall mounting
	Speaker	2*2W
	Microphone	Standard single microphone, dual microphone optional
	Light sensor	Support
	NFC	Optional, NFC 13.56MHz, ISO 14443A/ISO 14443B/ISO 15693/Mifare classic/Sony felica
	Button	POWER/VOLUME+/VOLUME-
	Camera	5.0M/P, front camera
	Working temp	0--40 degree
	Certificates	CE, FCC, ROSH
	Language	Multi-language
Accessories	Adapter	Adapter, 12V/2A
Accessories	User manual	yes
