250cd/m2 Desktop Laptop Tablet POS System Customer Feedback RJ45
Appearance features:

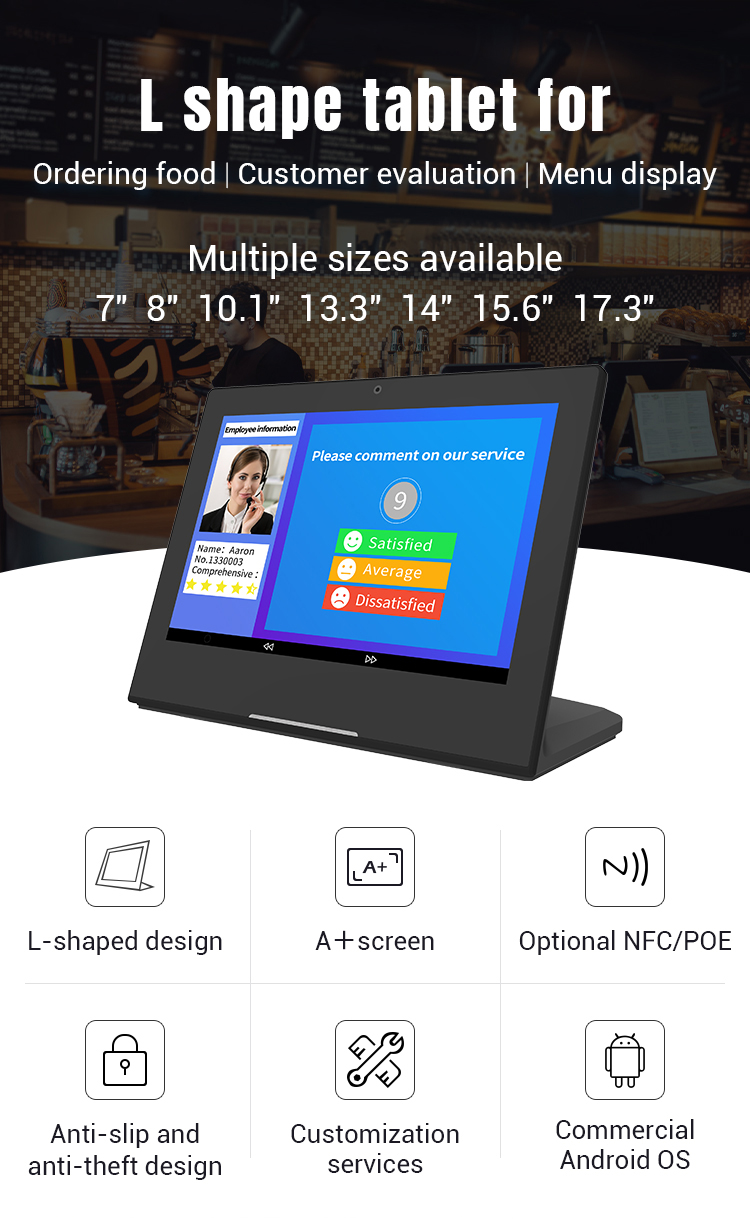

1. L-shaped appearance: The angle is 70 degrees, which can be
easily placed on the desktop without external bracket. Our machine
can be moved at any time without damaging the desktop.
2. Ultra-thin body, ultra-narrow bezel, designed to meet the use of
a variety of business scenes (optional)
3. Radiating hole: The fuselage has its own cooling hole to prevent
the heat generated during the operation of the equipment from
damaging the body and enhancing the performance and service life of
the machine.

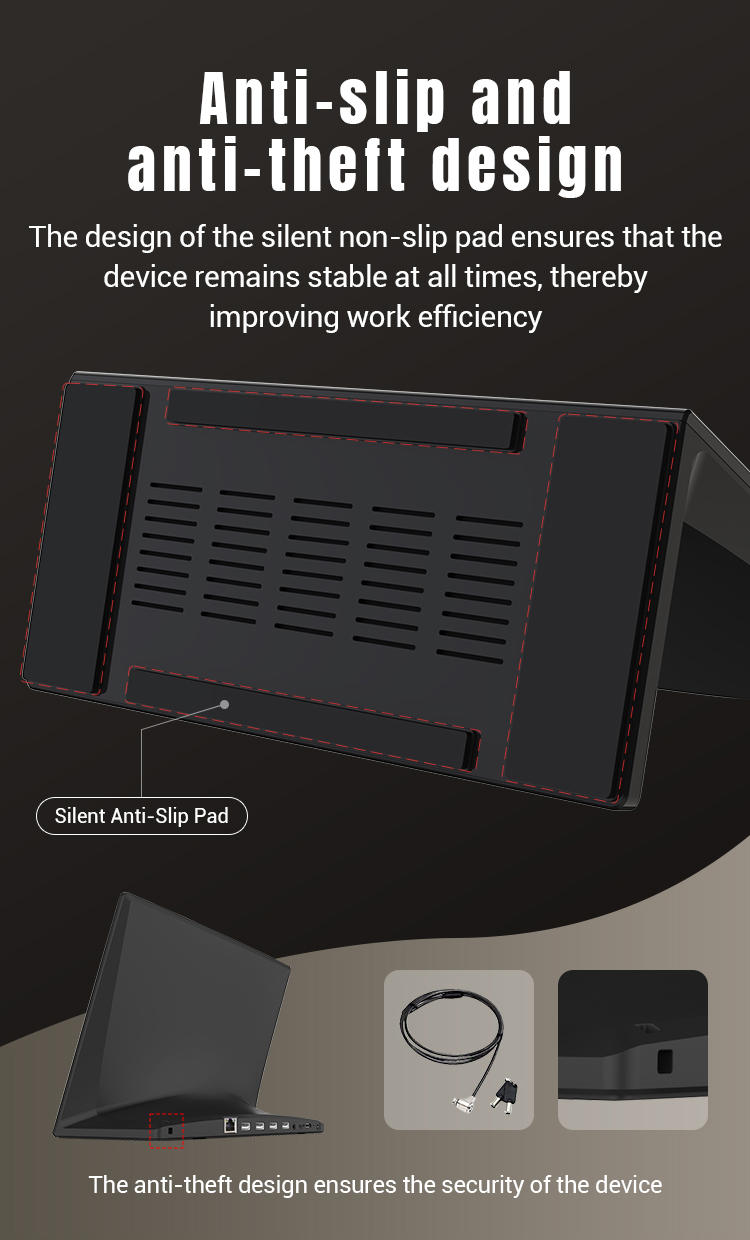

4. Mute non-slip pad at the bottom: Reduce your troubles in use,
non-slip and silent, more in line with your actual use needs
Use Scenarios
1. Library secretary management system
2. Advertising display and evaluation system at checkout counter
3. Barbershop advertising display
4. Place in the hotel room for hotel environmental service
evaluation
5. Evaluation of banking services
Function
1. High definition IPS screen, capacitive touch
2. Support for pre-installed customer apps
3. Battery optional
4. NFC Partially optional
5. More customizable content consultation please contact us, we
will try our best to meet your needs
Software system
Our machine has strong CPU performance (Quad core processor).It can
run all kings of applications smoothly .Different memory
configurations are available.
1. Standard configuration:RK3288 2+16G Android 8.1 system；(Android
5.1/ 6.0 /8/9.1/ 10.1 /11 available)；
2.High version: RK3399 Android 9.0 (memory available) ( Android
7.1/9.0/10.0/11 available)
Hardware

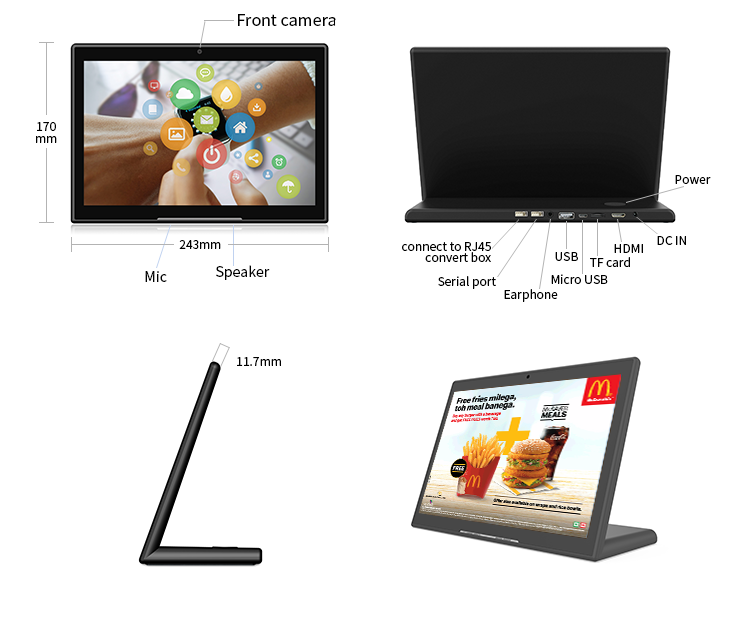

1. Interface:SD card, USB, serial port, headphone jack, OTG port,
RJ45
2. speaker:2*1W
3. Mic
4. Other customizable
| CPU | RK3566, Quad-core cortex A55 |
RAM | 2GB |
Internal memory | 16GB |
Operation system | Android 11 |
Touch screen | 10-Point capacitive touch |
| Panel | 10.1" LCD panel |
Resolution | 1280*800 |
Display mode | Normally black |
Viewing angle | 85/85/85/85(L/R/U/D) |
Contrast ratio | 800 |
Luminance | 250cd/m2 |
Aspect Ratio | 16:10 |
| WiFi | 802.11b/g/n |
Ethernet | Optional, RJ45 convert box(Ext) |
Support BT | BT 4.0 |
| Card slot | TF, support up to 32GB |
Micro USB | USB OTG |
USB | USB host 2.0 |
Serial port | 4P-2.0mm, serial port |
RJ45 | 4P-2.0mm connect to RJ45 box |
Power jack | DC power input |
Earphone | 3.5mm earphone |
| Speaker | 2*1W |
Microphone | yes |
Camera | 2.0M/P, front camera |
Working temp | 0--40 degree |
Certificates | CE, FCC, ROSH |
Language | Multi-language |
| Adapter | Adapter, 12V/1.5A |
Product photos
Company Profile
About us :
FAQ
1. Could you customize the product for me?
Our company supports a customized LOGO, SDK and PCBA, and also
offer pre-installation services. If you are interested in customizing more items, please contact our sales manager.
2. What is your products warranty and your after-sales service?
Our company is a certified national high-tech enterprise. Our
products have passed ISO9001 quality management system
certification, China Compulsory Certification(CCC), FCC, CE, RoHS,
HDMI and other certifications, and have been consistently praised
by our customers. The warranty period is one year. Our company
supports online after-sales service to response your questions in
time and help you solve the problem as soon as possible.
3. What is the MOQ on your product?
We can supply 1 unit for a sample order. There is a small quantity
in stock. If you need a discount for bulk orders, please feel free
to contact our online sales manager.
